Medicine Processing Recovery Vacuum Tray Dryer Low Temperature Vacuum Solvent Drying Oven

1.0 set
MOQ
Medicine Processing Recovery Vacuum Tray Dryer Low Temperature Vacuum Solvent Drying Oven
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Vacuum Drying Equipment
Drying Capacity (kg): 50kg
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 220V/380V/50HZ/3P
Power: 5
Dimension(L*W*H): 1135*810*1024mm
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 300
Applicable Industries: Food & Beverage Factory, Chemical factory
Showroom Location: Viet Nam, India, South Korea, South Africa, Japan
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pressure vessel
Evaporation Capacity(kg/h): 10
Heating Method: Steam Heating
Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other
Drying Tray: 4-48pcs
Tray size: 64x46x4.5cm
Vacuum degree: -0.1Mpa
After-sales Service Provided: Online support, Video technical support, Field installation, commissioning and training
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Viet Nam, India, Thailand, Malaysia, South Africa
Πιστοποίηση: ISO9001
Βασικές πληροφορίες
Πιστοποίηση: ISO9001
Πληρωμής & Αποστολής Όροι
Packaging Details: Plywood case
Supply Ability: 5 Set/Sets per Month
Περιγραφή προϊόντων
Product Overview

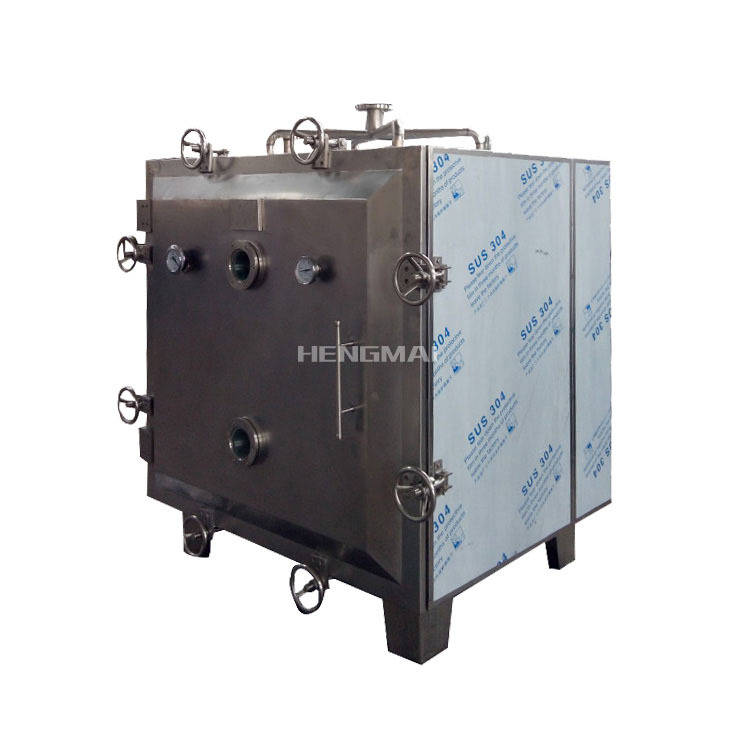

FZG Series Square Vacuum Dryer

This equipment is used for powder drying, baking and various glass containers disinfection and sterilization, especially suitable for drying materials with heat sensitivity, easy decomposition, easy oxidation and complex components.

Main Features

1. As the boiling point of the material solution decreases under vacuum, the heat transfer impetus of the evaporator increases, so a certain amount of heat transfer can save the heat transfer area of the evaporator.
2.The heat source for evaporation can be low pressure steam or heating steam.
3.The evaporator has less heat loss.
4.It can be disinfected before drying, and no impurity mixed in the drying process, which meets the requirements of GMP.
5.It belongs to static vacuum dryer, so the shape of drying material will not be damaged. Using the condenser, the solvent in the material can be recovered effectively.

Principle

It's well-known that vacuum drying is to heat and dry the dried materials under vacuum conditions. If use vacuum pump for dehumidification, the drying rate will be accelerated. If use condenser, the solvent in the material can be recovered through the condenser. If use SK series water ring vacuum pump, the condenser is not needed and the investment is saved.
Model
FZG-4
FZG-8
FZG-10
FZG-15
FZG-20
FZG-25
Inside size(cm)
75*75*116
92*100*123
92*146*123
122*133*123
155*150*123
155*150*147
Outside size(cm)
105*95*170
145*120*175
145*166*175
175*153*175
200*170*175
200*170*200
Baking plate size(cm)
46*64*4.5
Baking plate number(pcs)
8
16
24
32
43
60
Baking plate layers
8
Plate layer spacing(cm)
12
Power(kw)
6
9
12
15
21
27
Heat transfer oil capacity(L)
50
80
100
150
200
250
Capacity of heating oil station(L)
70
100
120
180
250
300
Temperature(℃)
Normal temperature -200℃
Heating mode(optional)
heat transfer oil
Oven vacuum degree
Vacuum degree:-0.1mpa(higher vacuum degree can be designed)
Applications
